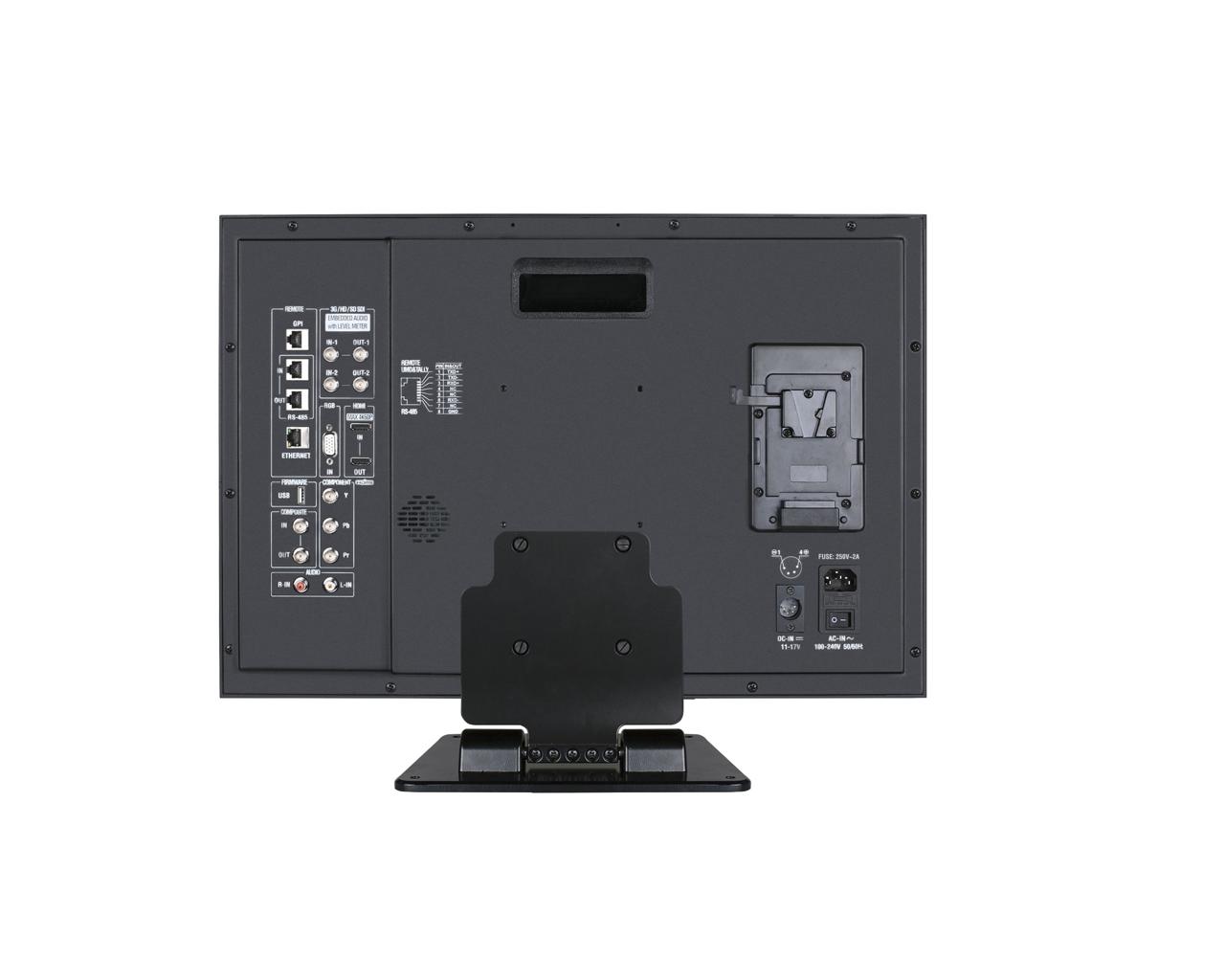

JVC Kenwood DT-G21E 4K compatible HD Studio Monitoring

DT-G series monitors support up to 4K60p HDMI, downsample to FHD display, and support 3G-SDI (SMPTE 425M) including Level A&B; 2K-SDI (2048x1080p) can also down sample to FHD display. Full-Front USB Colormetrie Sensor support, with build in Auto-Calibration support

Sună pentru preț

(+40) 722 428 874

Adaugă la favorite
Adaugă la favorite
Category:

Ți-a plăcut acest produs? Adaugă-l acum la favorite.

Adaugă la favorite
Adaugă la favorite

Description

Features

  • Full HD LCD panel 21,5” 1920×1080 pixel with LED back-lighting.
  • Supports 4K-HDMI and 3G-HDSDI
  • Special ZERO Latency Mode for critical Audio/Video applications
  • 10-bit processing Video Processing
  • 3DLUT auto colour calibration
  • Built-in De-log LUTs
  • User 3DLUT upload
  • Webserver IP remote control
  • Selectable gamma preset 1.8, 2.2, 2.4 and 2.6.
  • Safety area selection: 80%, 85%, 90%, 93%, 95%
  • Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Native scan, over scan and normal scan selection
  • H/V delay, freeze frame display mode
  • AFD (Active Format Description) info display
  • Frame/Field view selection
  • SDI Timecode (LTC, VITC1&2) display
  • R/G/B/Mono, False color, Zebra stripes display
  • Built-in waveform monitor, with Line-Selector (for HDSDI sources)
  • Built-in vector scope and histogram monitor (for HDSDI sources)
  • 16-ch audio level meters with alert and output selection
  • Focus assist display mode
  • GPI control via RS485 port connection
  • On-screen TALLY display (Soft-and Hardware Tally)
  • TSL UMD and User editable video title
