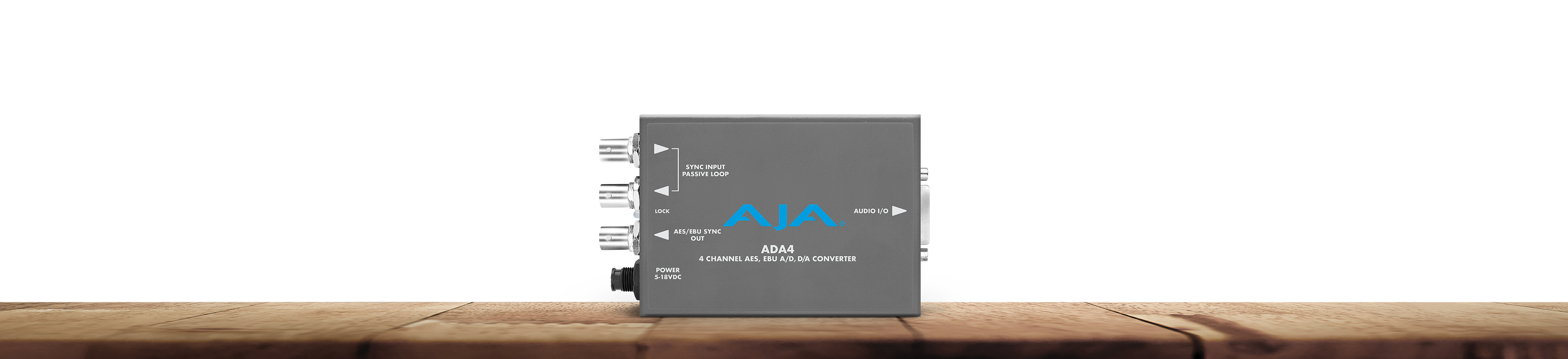

AJA ADA4 4-Channel Bidirectional Audio A/D & D/A Converter

Simultaneous A/D and D/A, or AES SynchronizerFull-time AES11 low jitter reference outputUp to 4 channels of balanced analog to AES/EBU audioUp to 4 channels of AES/EBU to balanced analog audioSupplied XLR breakout cableAES11/Wordclock/Tri-level Sync/Color Black Reference LoopAdjustable audio levelsSample Rate Conversion between 96 kHz and 48 kHzDipswitch configuration5-18VDC Power (included with purchase)

Sună pentru preț

(+40) 722 428 874

Adaugă la favorite
Adaugă la favorite
Category:

Ți-a plăcut acest produs? Adaugă-l acum la favorite.

Adaugă la favorite
Adaugă la favorite

Description

Features

  • Simultaneous A/D and D/A, or AES Synchronizer
  • Full-time AES11 low jitter reference output
  • Up to 4 channels of balanced analog to AES/EBU audio
  • Up to 4 channels of AES/EBU to balanced analog audio
  • Supplied XLR breakout cable
  • AES11/Wordclock/Tri-level Sync/Color Black Reference Loop
  • Adjustable audio levels
  • Sample Rate Conversion between 96 kHz and 48 kHz
  • Dipswitch configuration
  • 5-18VDC Power

Supplied Breakout Cable

The included breakout cable provides the audio connections for ADA4, allowing 8 channels of AES audio input and output while keeping the overall size of the mini-converter compact and portable.

Universal Power Supply

All AJA Mini-Converters ship with a that includes international plug connections for use around the world.

Compact and Portable

AJA are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the .



Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,   will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Reviews

There are no reviews yet.

Be the first to review “AJA ADA4 4-Channel Bidirectional Audio A/D & D/A Converter”

Your email address will not be published. Required fields are marked *


Tech Specs


Audio I/O Analog

  • Balanced, XLR, one channel per XLR connector

Audio I/O AES

  • Balanced 110 ohm, XLR, two channels per XLR connector

Audio Levels Analog(with Respect to Full Scale Digital)

  • +24dBu (SMPTE RP155), +18dBu (EBU R68), +15dBu (Germany), +10dBV (consumer +12.2 dBu)

Audio Converters

  • 24-bit, 48/96 KHz

User Controls

External Dipswitch:

  • Channel 1/2: A/D, D/A
  • Channel 3/4: A/D, D/A
  • Audio Level 1
  • Audio Level 2

Reference Loop

  • 75 Ohm, unterminated, HD/SD Sync, AES-11, or Wordclock (48/96 KHz)

Size (w x d x h)

  • 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Power

  • +5-18VDC, 3 watts. power supply required, included with purchase

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
