10-bit AJA quality analog to digital conversionLow power, compact sizeYPbPr/RGB component or composite inputHD/SD-SDI outputConfigure via DIP switch or USB port and supplied Mini-Config softwareFive year warranty

2-Channel Single-Mode LC Fiber to 12G-SDI Receiver2 simplex or 1 duplex connection (LC connector)2 independent channels of 12G-SDI output, which also support 6G/3G/HD/SD-SDIBoth Fiber-to-SDI paths are completely independentUses 5-20VDC power (DWP-U-R1 universal power supply included)five year warranty

4-Channel Single-Mode ST Fiber to 3G-SDI Receiver4 simplex input connection (ST connector)4 independent channels of 3G/HD/SD-SDI4K/UltraHD-SDI over 4 fiber linksUses 5-20VDC power (DWP-U-R1 universal power supply included)Five year warranty

4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter4 simplex or 2 duplex output connections (LC connector)4 independent channels of 3G/HD/SD-SDI input4K/UltraHD-SDI over 4 fiber linksUses 5-20VDC power (DWP-U-R1 universal power supply included)Five year warranty

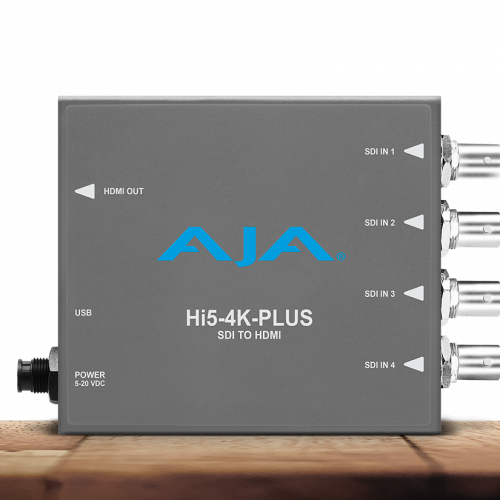

Convert Quad-3G-SDI to HDMI 2.0b at up to 4K 60pSupport for 4:4:4/4:2:2/4:2:0 HDMI 2.0b outputSupports 12-bit workflowsHDR signaling metadata pass-through and optional overrideHDR support for HDR10 and HLGEmbedded audio support 8-channel 24-bitEmbedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)Configure via USB port and supplied Mini-Config softwareUses 5-20VDC power (DWP-U-R1 universal power supply included)Five year warranty

IPR-10G2-HDMI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for monitoring on, or routing to, HDMI devices. Providing two SFP+ cages for redundancy protection via "hitless switching", IPR-10G2-HDMI is rugged, quiet and fanless. AJA Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.Key features:SMPTE 2110 audio, video receiverRugged, quiet, fanless design2x 10 GigE SFP+ cages for media LAN (providing support for "hitless switching" up to 1080 60p) with status light 1x 1 GigE RJ-45 socket for control LAN with status lightDedicated HDMI receiver with full size (standard type A) HDMI 1.4b (24/30-bits per pixel) output up to HD 60p, 4:2:2, 10-bit, YCbCr/RGB, or UltraHD 30p, 4:2:2, 8-bit, YCbCr, or UltraHD 50p, 4:2:0, 8-bit, YCbCrEmbedded HDMI audio output (up to eight channels)2x RCA analog audio output (simultaneous with HDMI audio)Reference In connector to enable locking sync of baseband output for local environmentSystem Modes to enable quick setup for lowest latency / highest protection, etc.Web browser accessible setup and control interface, via built-in webserver1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup softwareNMOS and Ember+ supportUSB keyboard control for quick and easy preset recallsCustomizable control with AJA REST APIFive year warranty
