The BullDog Mini is a compact, rugged field fiber transport device designed from the ground up to meet the needs of single camera and booth kit setups. The BullDog Mini can transport bidirectional 3G-SDI, IFB, and two MIC/line audios as well as, two serial data channels – all over a single strand of single-mode fiber. Optical connector options include SMPTE, opticalCon, or standard ST. With options for remote power via SMPTE hybrid fiber cable and battery operation, the BullDog Mini is ready for any location regardless of available power.

The COMMS 300 and the openGear® version, Intercom units provide a means to interface between two channels of 2-wire party-line intercom audio and two channels of 4-Wire analog line-level signals. The unit is capable of performing auto nulling for each channel with the push of a button. In addition, each of the 4-Wire input and output channel levels are monitored and displayed on easy to understand front panel VU meters. With the flip of a switch, the unit can be a +28VDC party-line voltage power source while providing the 200-ohm intercom audio termination on both channels. If so desired, the party-line source and termination can be removed by just flipping the switchback. The unit can also be configured to work with either RTS party-line or Clear-Com party-line equipment with the flip of a front panel control switch. This switch adjusts the output gain between the party line circuitry and the 4 Wire line-level circuitry depending on which type of units one is interfacing with Auto nulling is done to achieve maximum return loss between the 4 Wire input and the 4 Wire output channels.

Designed for Field Applications with a Very High Signal Count.

From 1 to 18 signals per fiber and built-in cross-points, the HD-4000 Series makes your SDI signal transport and distribution SIMPLE!

Durable and Fully Customizable, Offering Virtually Any Signal Combination.

MultiDyne's Most Customizable, Rugged and High-Density Solution to Date.

The MDoG-6001-DA8-AESB is a 110 Ohm AES/EBU digital audio distribution amplifier designed for broadcast use. It provides 8 copies of the incoming balanced AES3 signal when used with the R2-6001-DA8-AESB full rear module or 4 copies of the incoming signal when used with the R2-6001-DA8-AESB split rear module. The MDoG-6001-DA8-AESB supports audio sampling frequencies from 32kHz to 96kHz. Cable equalization and reclocking techniques enable the MDoG-6001-DA8-AESB to recover the incoming digital audio signal reliably.

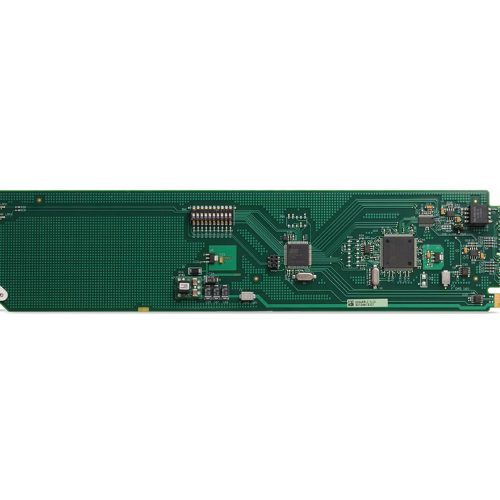

The MDoG-6001-DA8-AESU is a 75 Ohm AES/EBU digital audio distribution amplifier designed for broadcast use. It provides 8 copies of the incoming unbalanced AES-3id signal when used with the OGC-3001 full rear module or 4 copies of the incoming signal when used with the MDoG-6001-DA8-AESU split rear module.
